SPECIFICATIONS

Application: Electric Toy

Brand Name: diymore

Condition: New

Hign-concerned Chemical: None

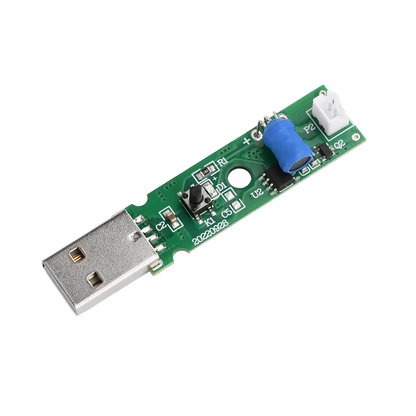

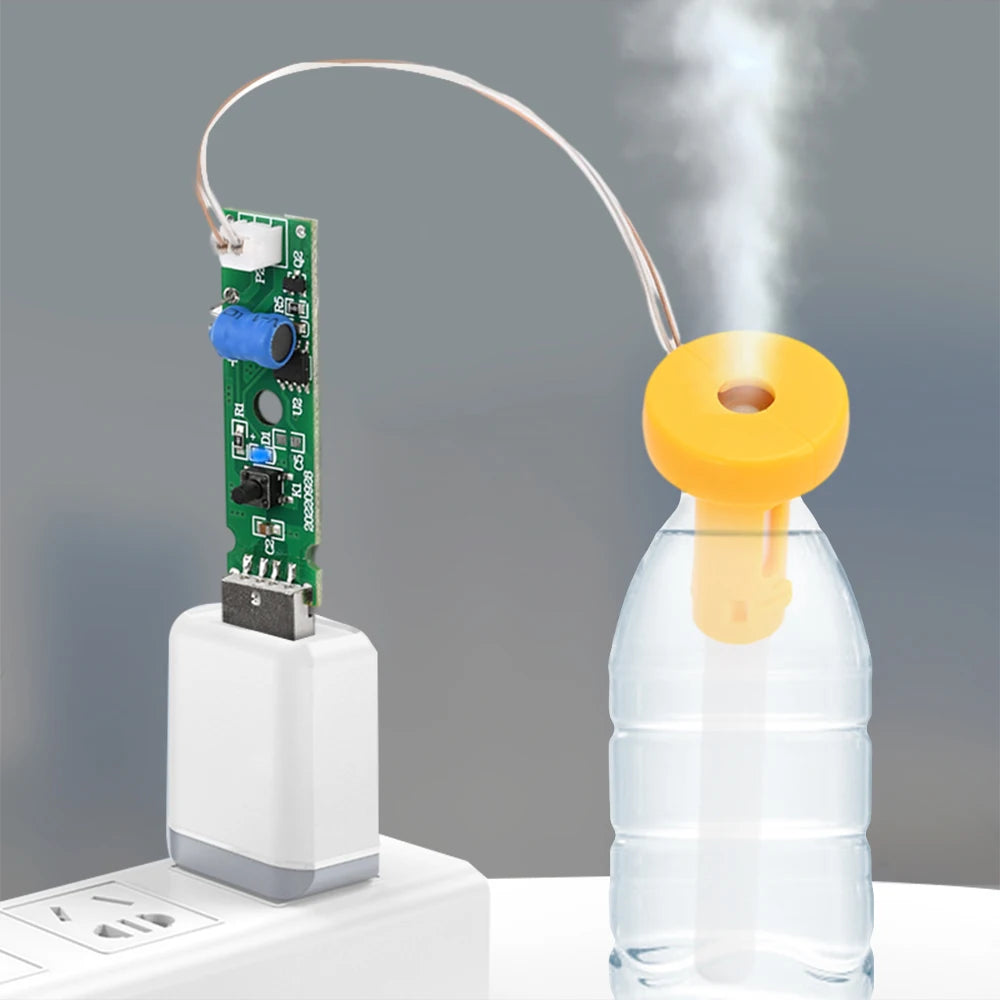

Model Number: USB Interface Mini Humidifier Misting Module

Origin: Mainland China

Package: SOP

Quantity: 1

Supply Voltage: DC 5V

Type: Module

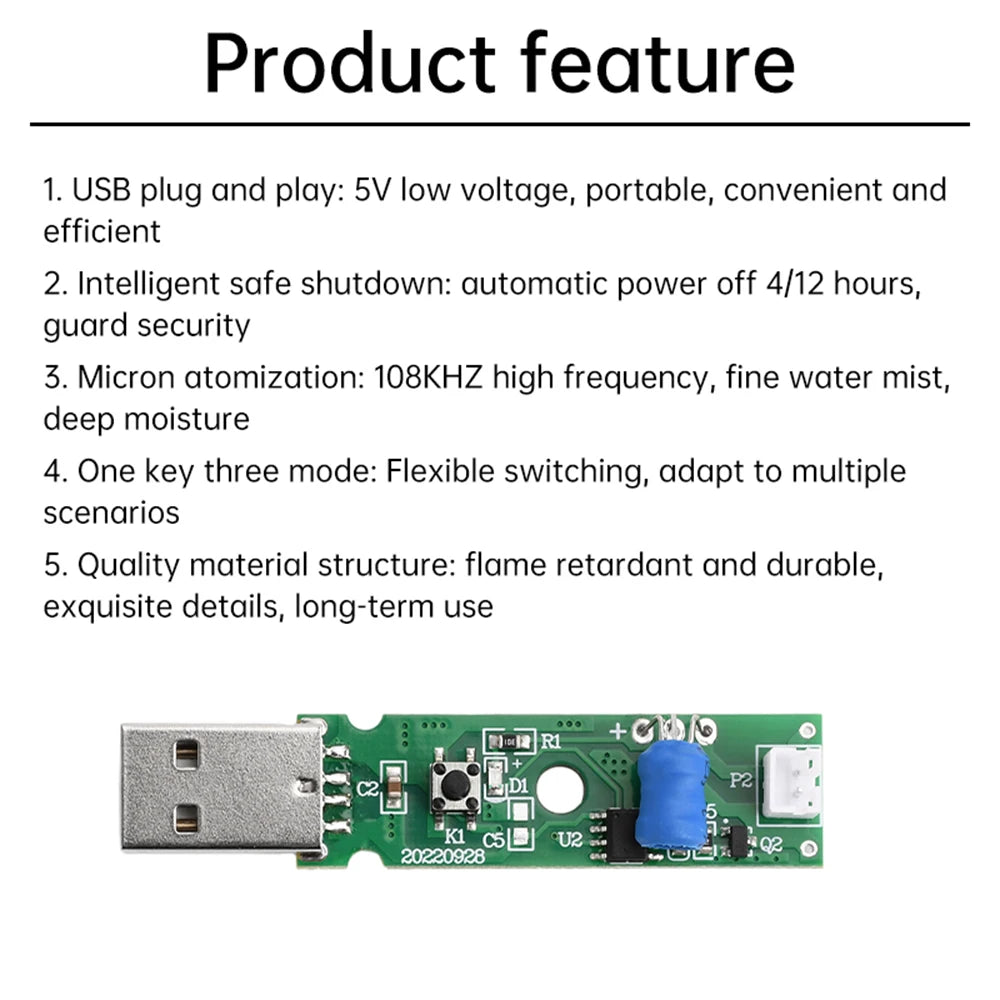

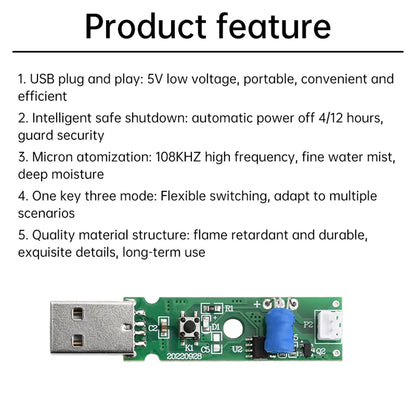

Features:

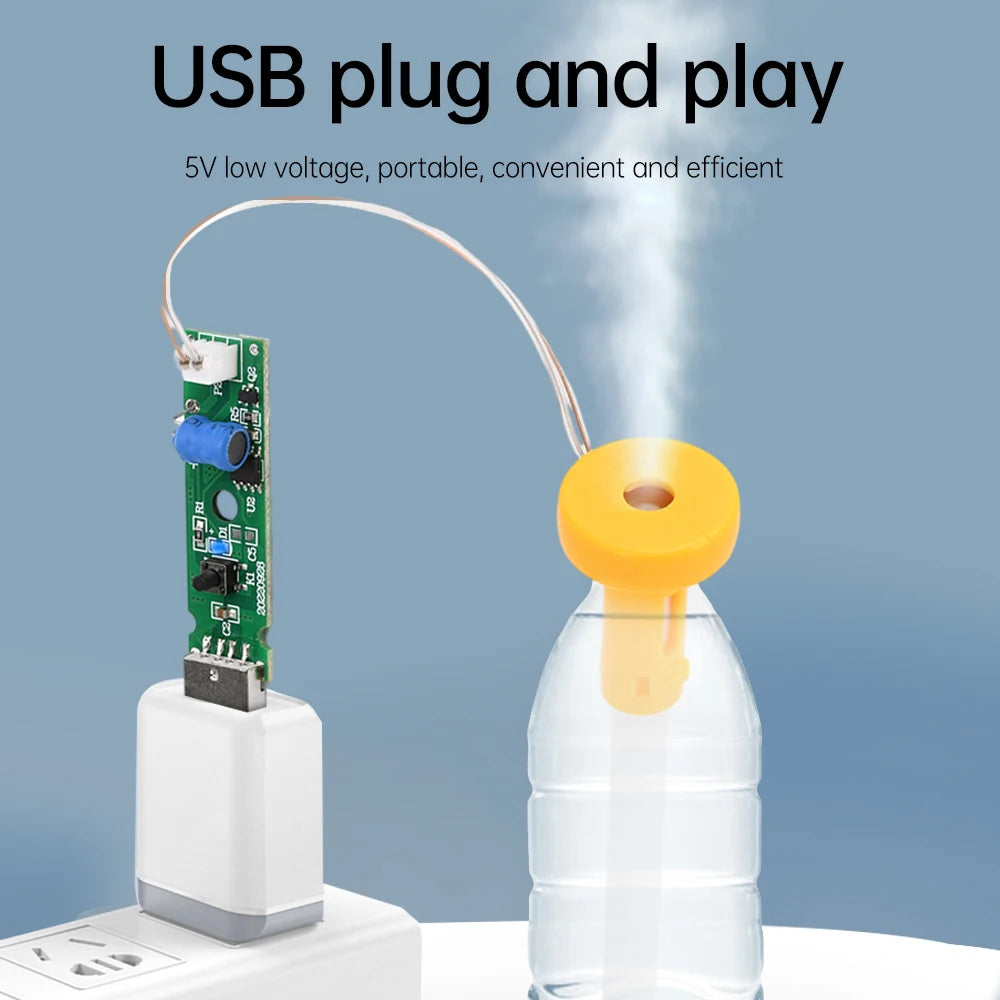

1. USB plug and play: 5V low voltage, portable, convenient and efficient
2. Intelligent safety shutdown: automatically power off every 4/12 hours to protect safety

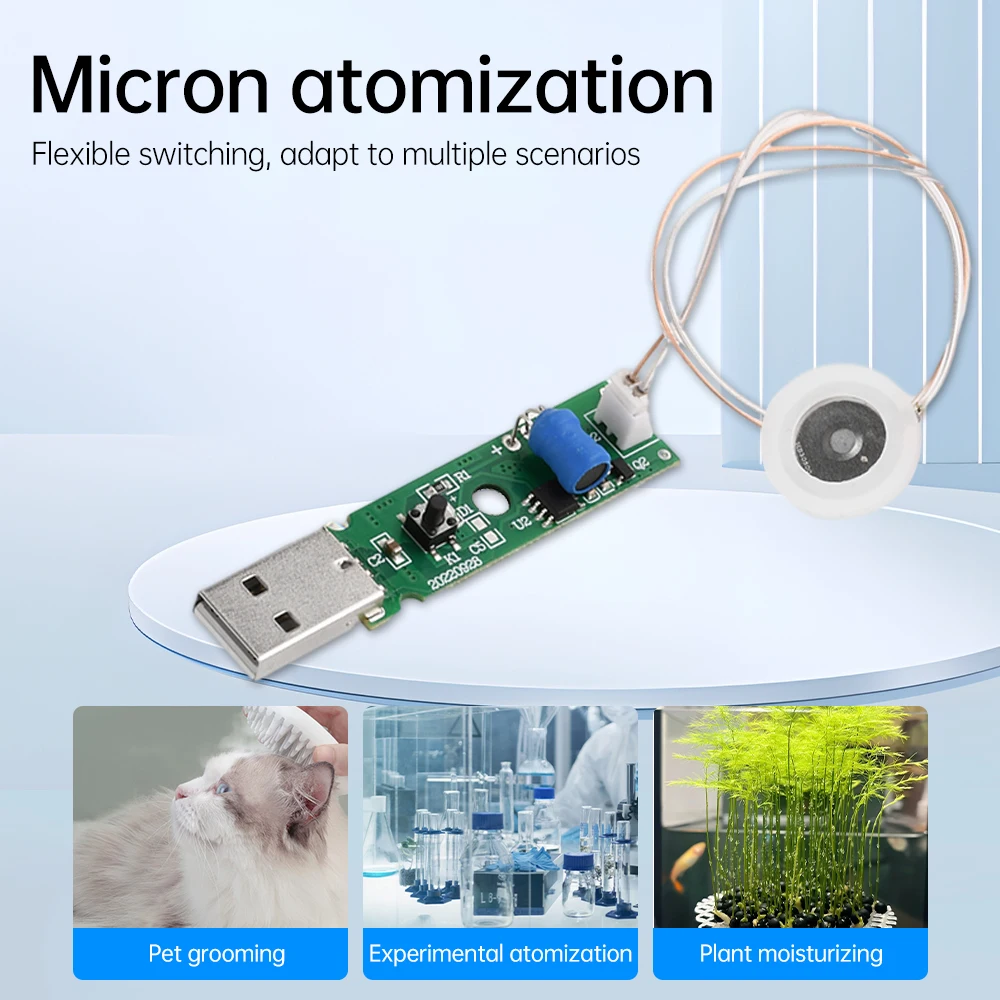

3. Micron level atomization: 108KHZ high frequency, fine water mist, deep moisturizing
4. Three modes with one click: flexible switching to adapt to diverse scenarios
5. High-quality material structure: flame retardant and durable, exquisite details, long-term use

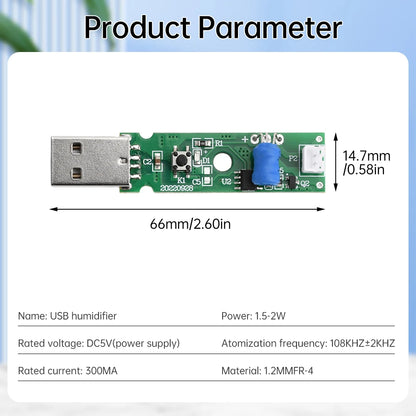

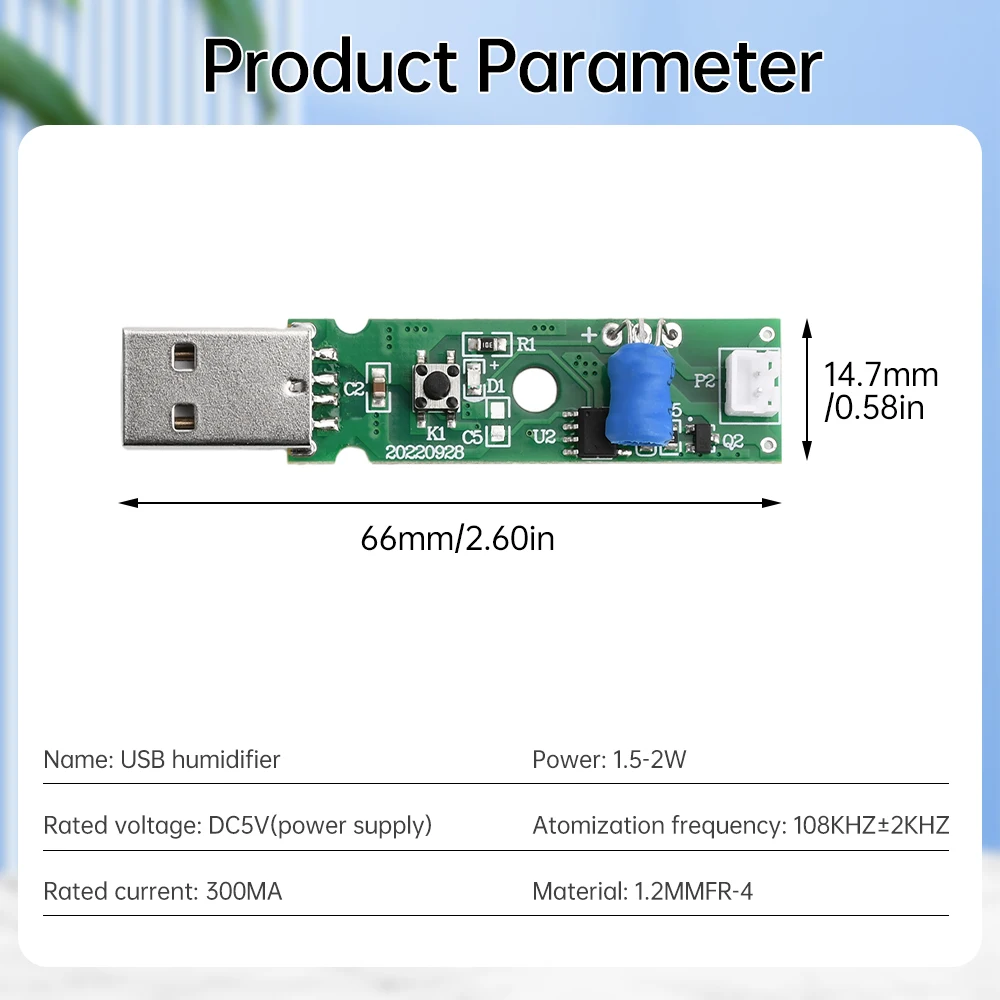

Parameters:
Name: USB humidifier
Rated voltage: DC5V (power supply)
Rated current: 300MA
Power: 1.5-2W
Atomization frequency: 108KHZ±2KHZ
Material: 1.2MMFR-4

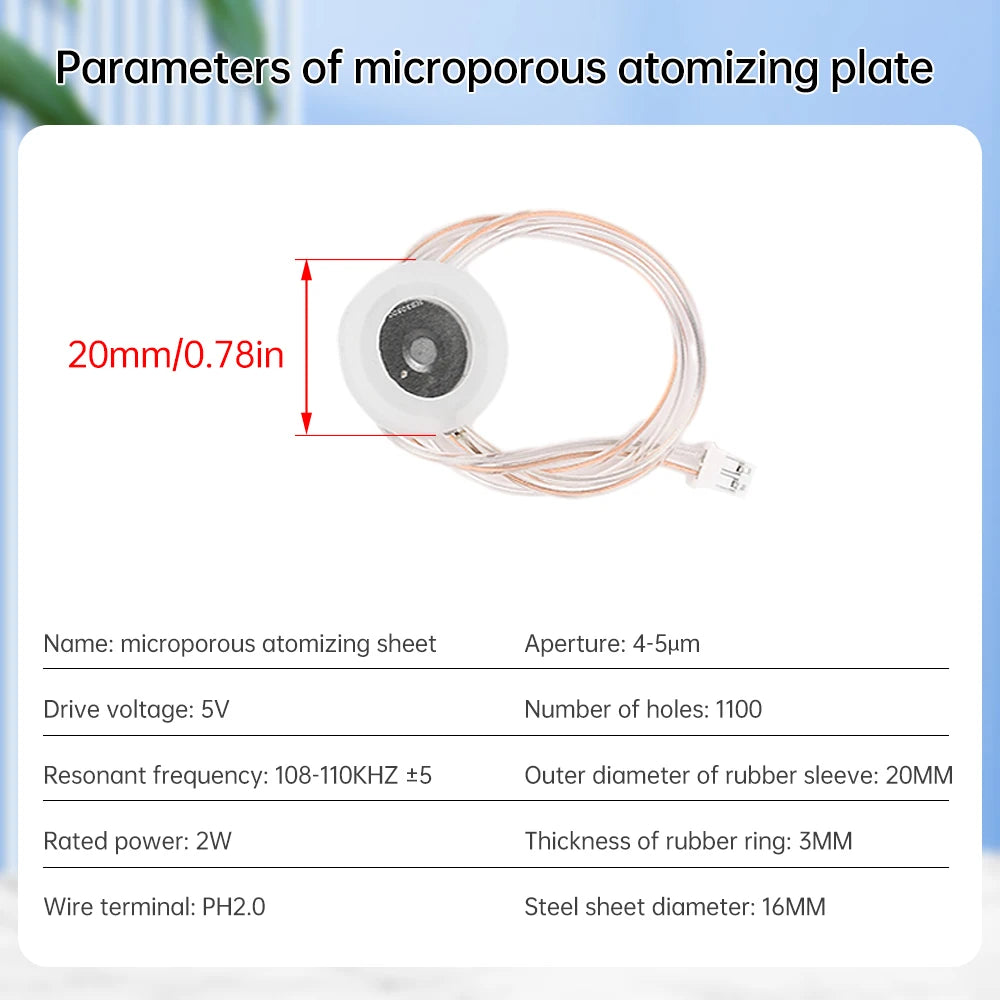

Atomizer tablet parameters:
Name: Microporous atomizer tablet
Drive voltage: 5V
Resonance frequency: 108-110KHZ ±5
Rated power: 2W
Pore ​​size: 4-5μm
Number of holes: 1100
Silicone sleeve outer diameter: 20MM
Apron thickness: 3MM
Steel sheet diameter: 16MM
Cord length: 25CM

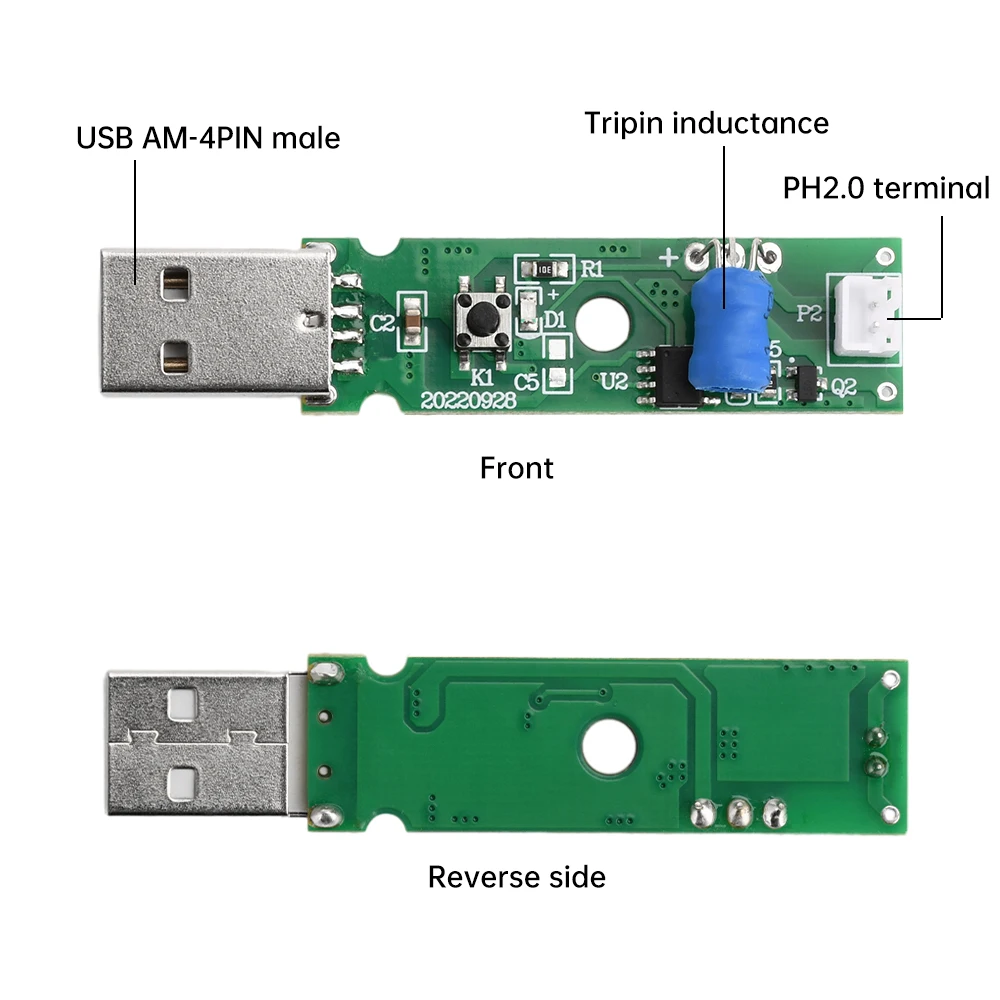

Line terminal: PH2.0


How to use:

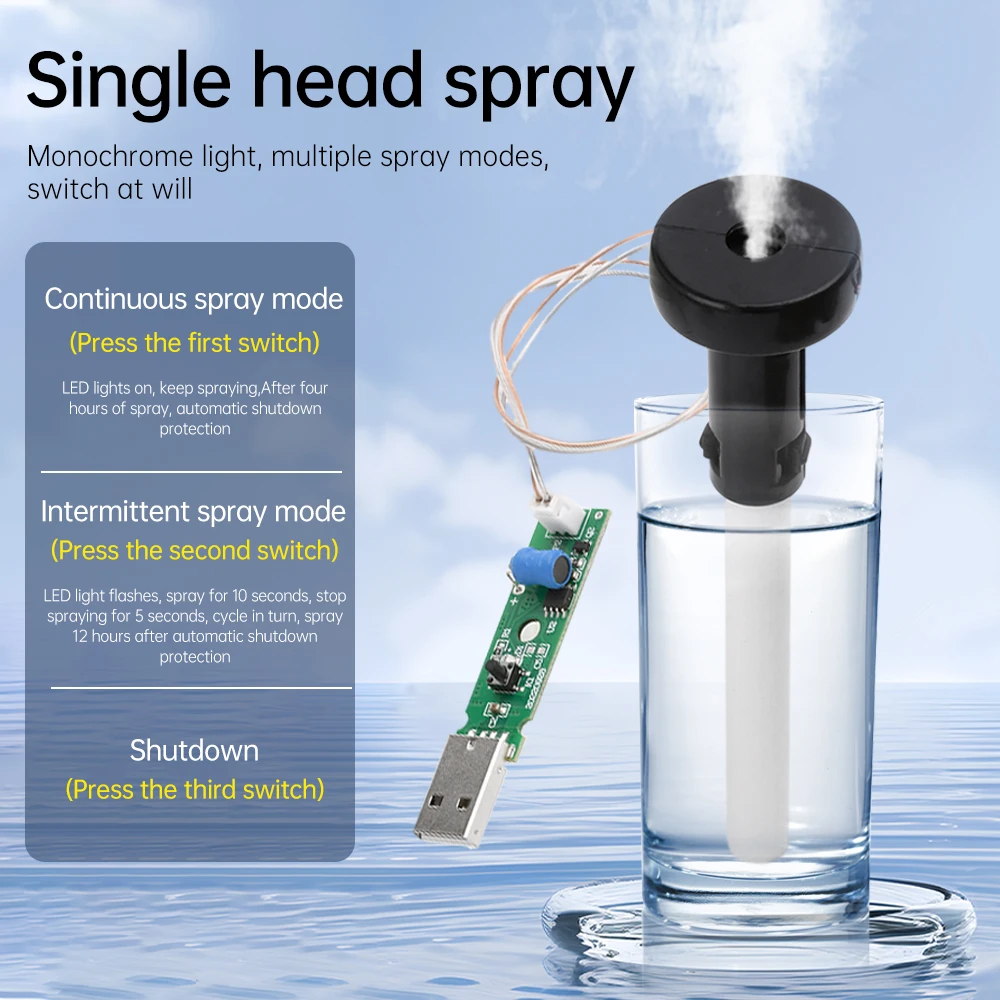

Continuous spray mode:
Press the switch for the first time, the LED light will always be on, and the continuous spray mode will keep spraying. After four hours of spraying, it will automatically shut down for protection.
Intermittent spray mode:
Press the switch for the second time, the LED light flashes, intermittent spray mode, spray for 10 seconds, stop spraying for 5 seconds, cycle in sequence, automatically shut down after 12 hours of spraying for protection
Shutdown:
Press the switch a third time

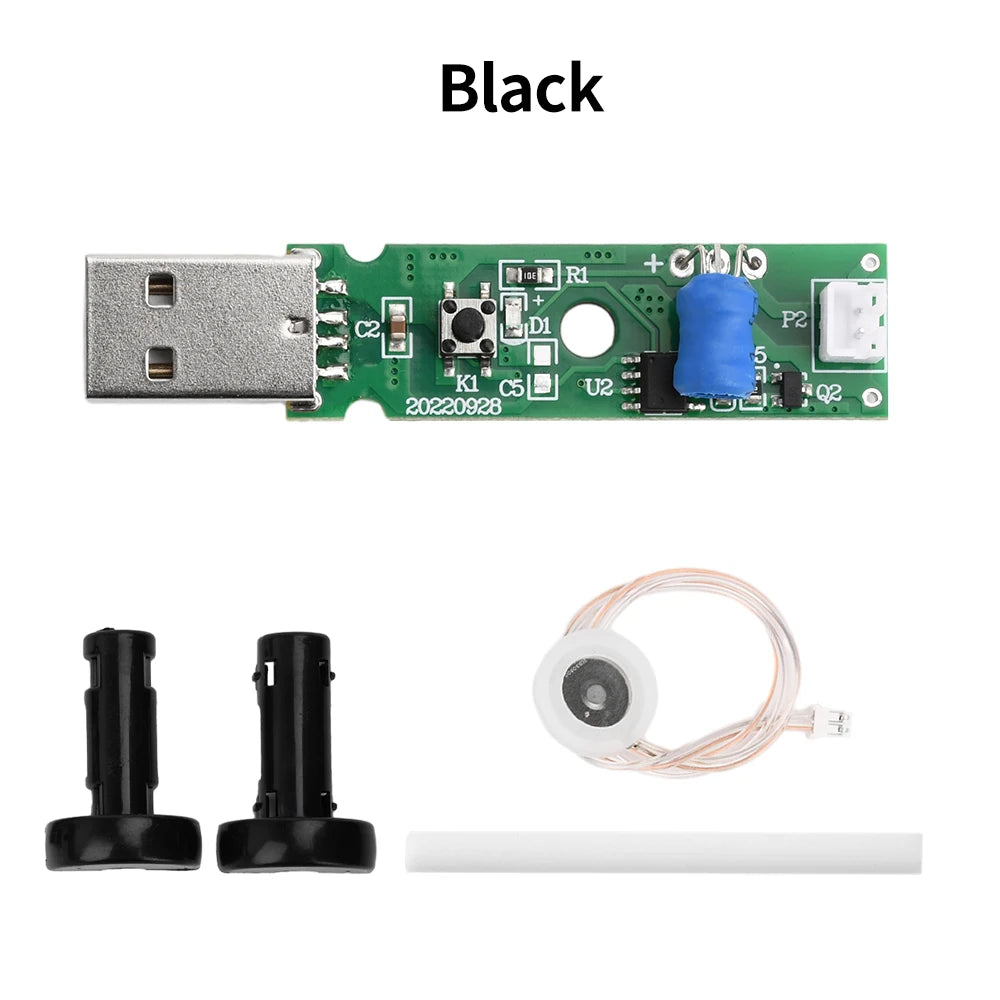

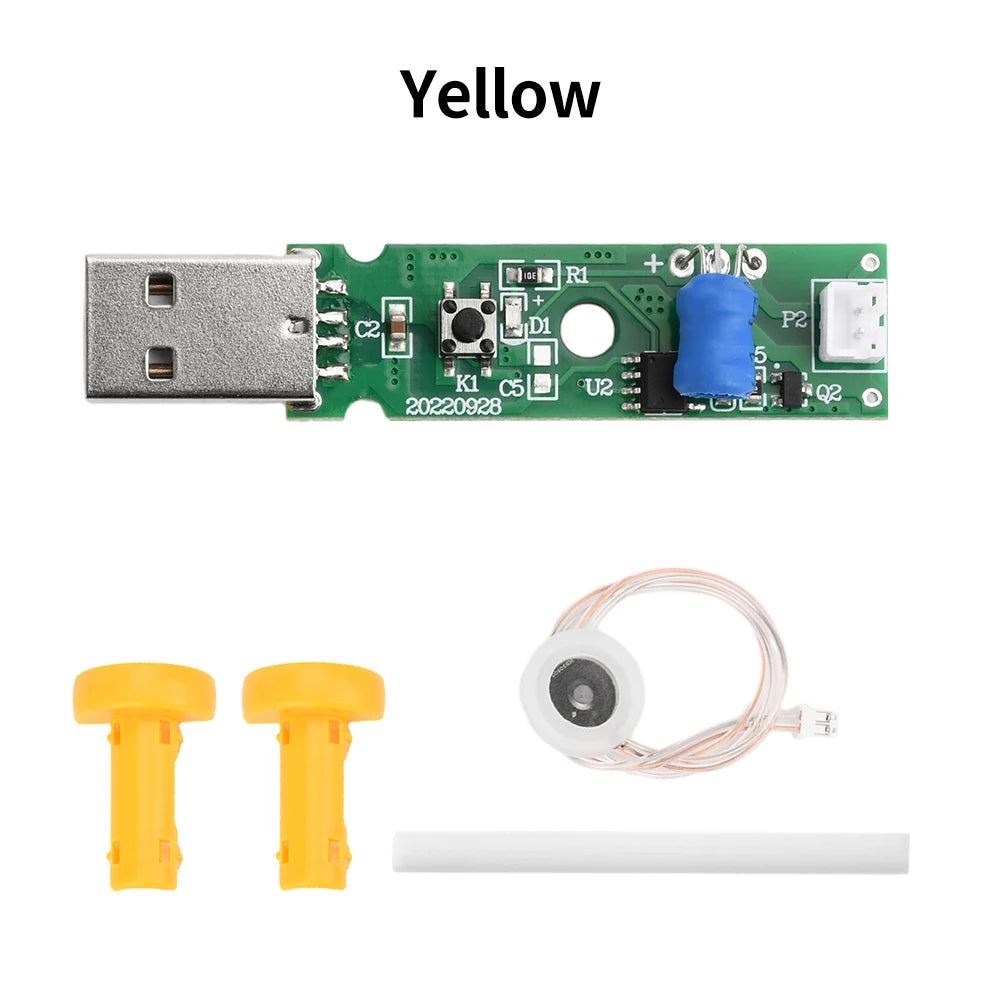

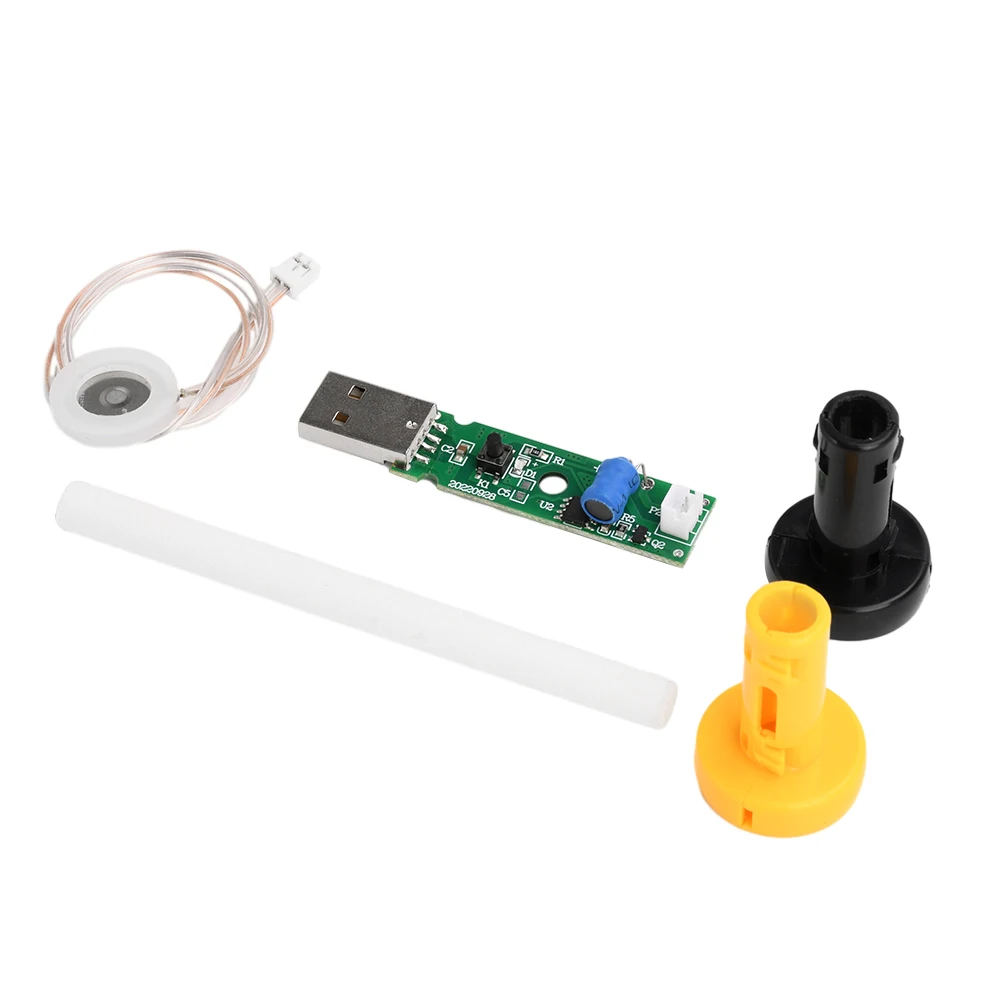

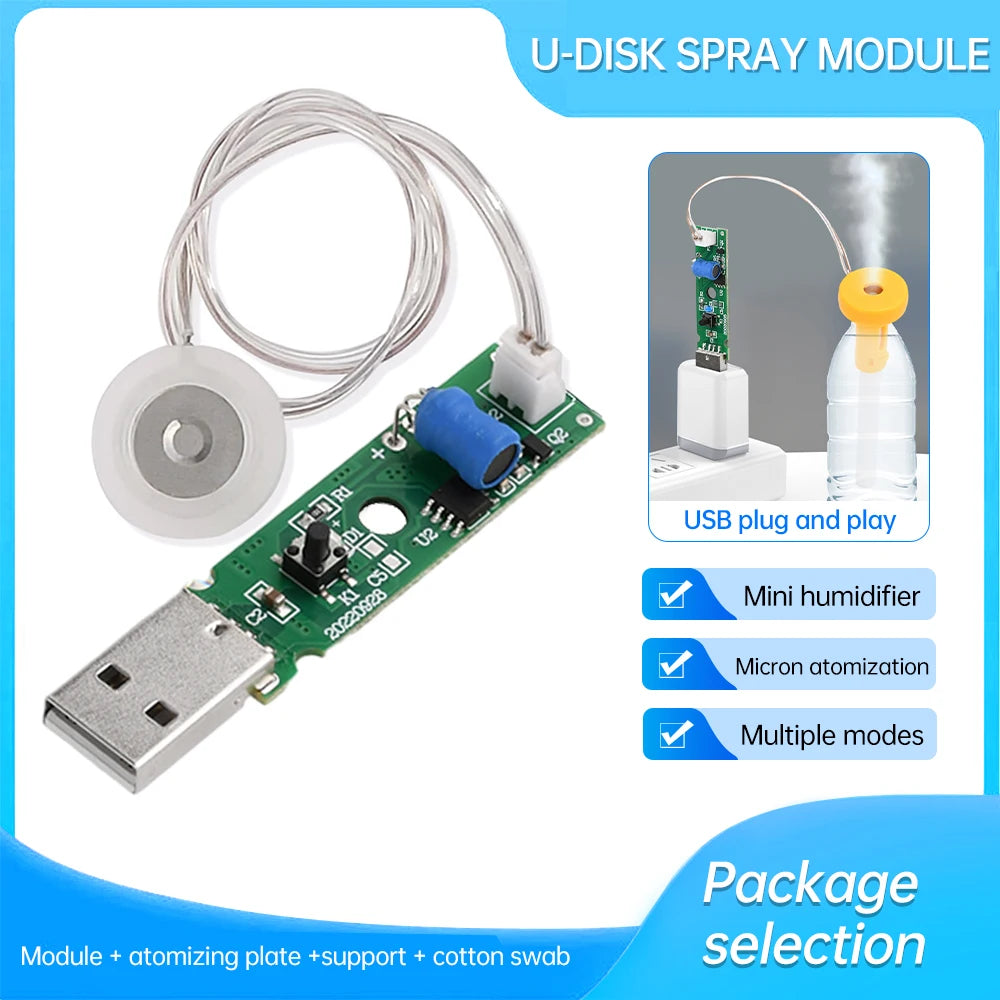

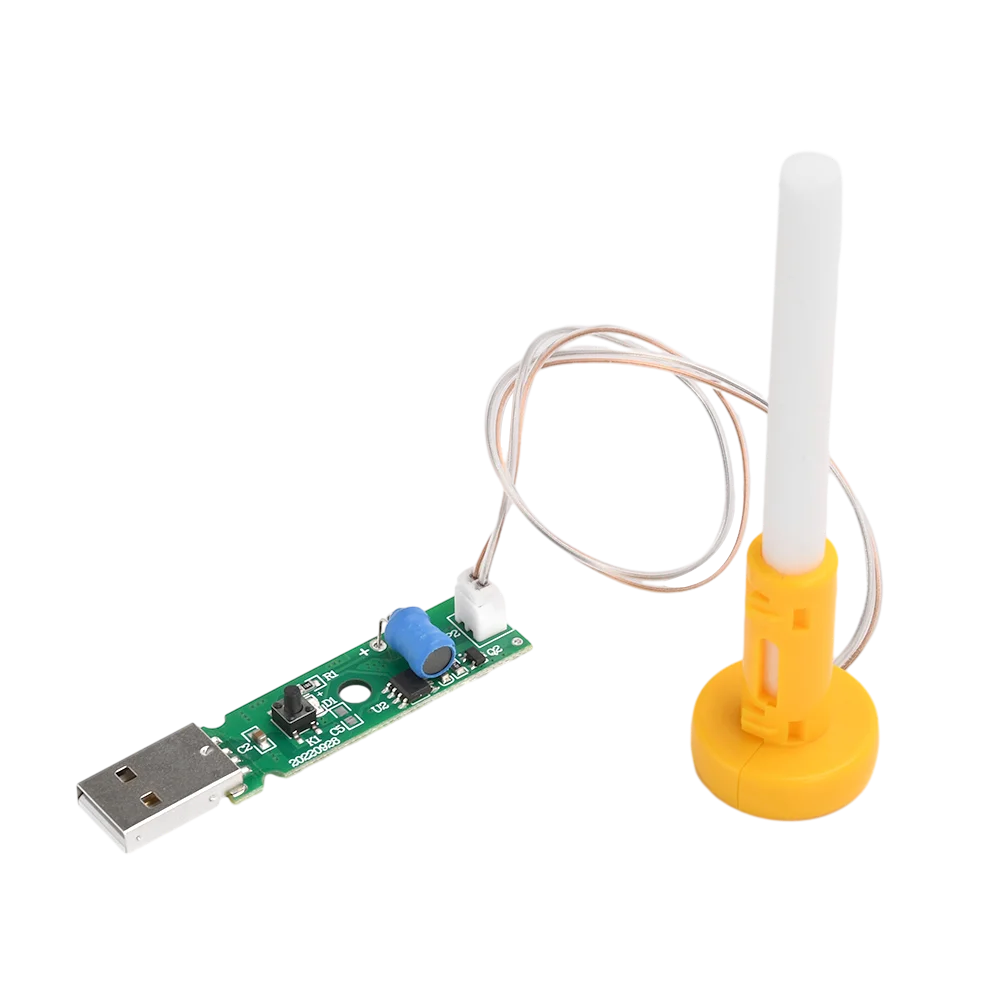

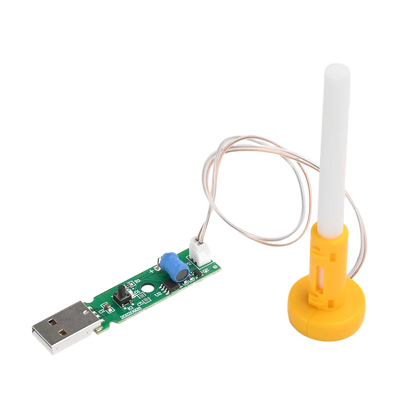

Shipping list:
Module x1
Atomizer tablet x1

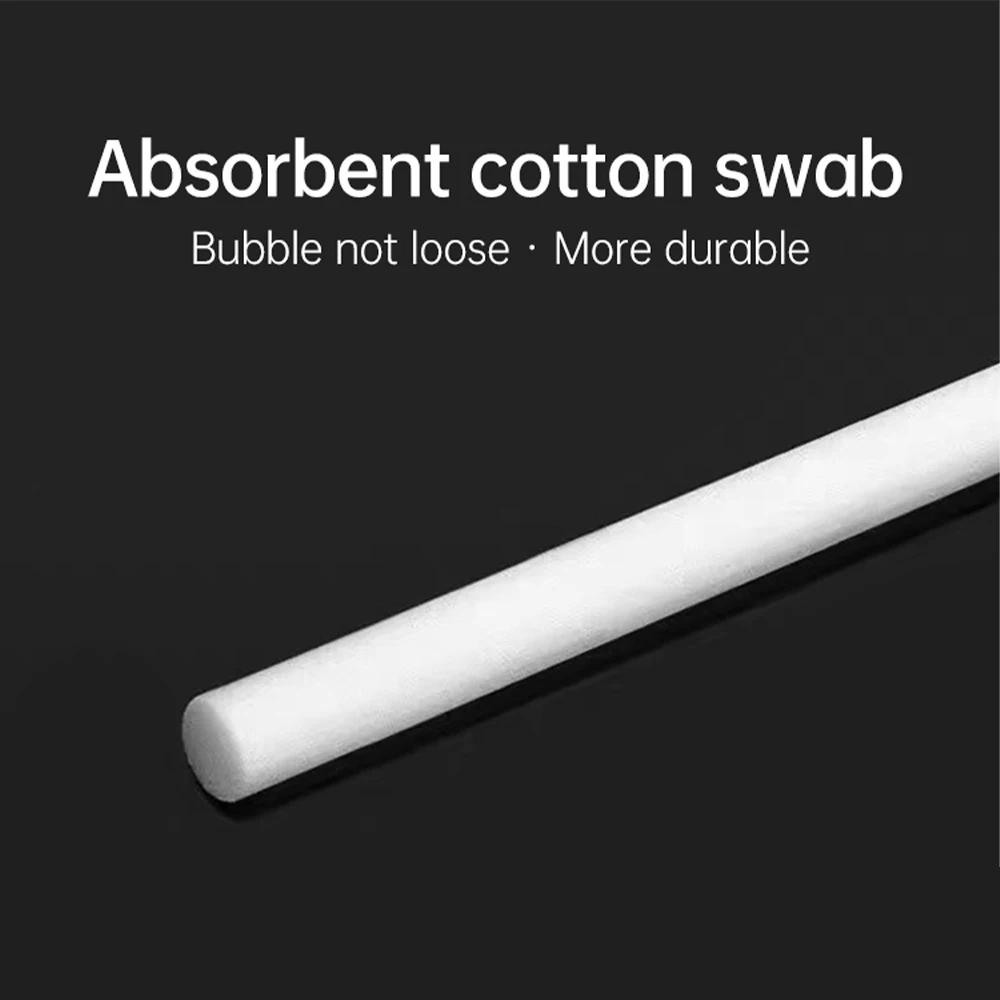

Cotton swab x1

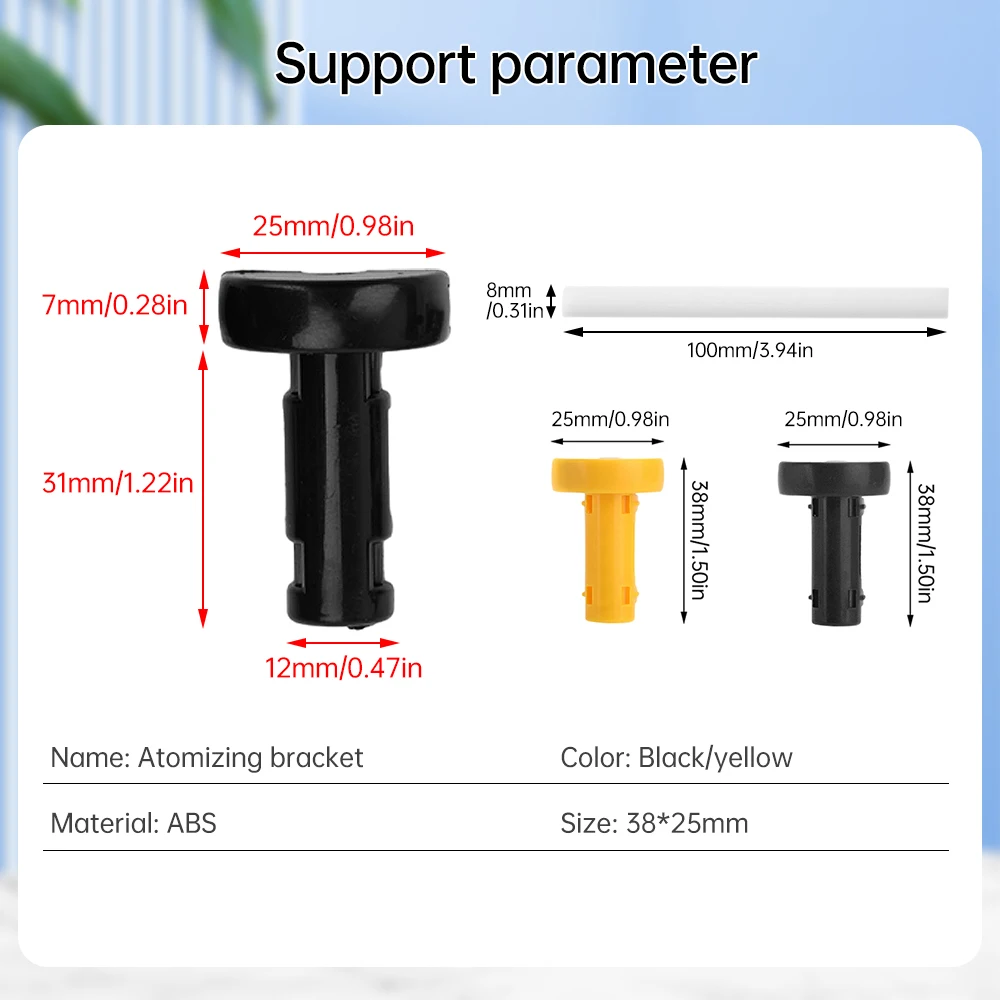

Bracket x1
